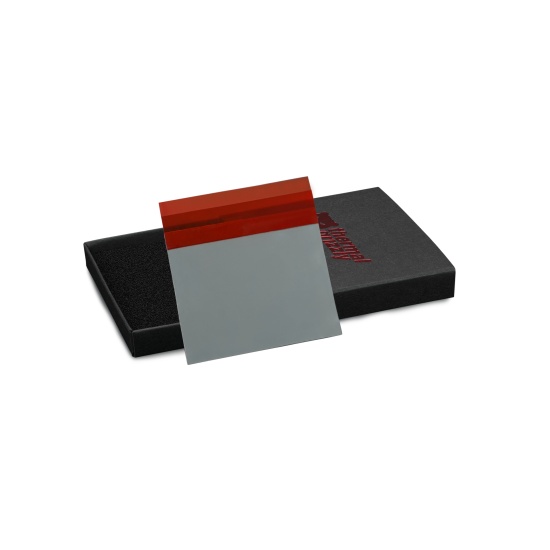

Thermal Grizzly PhaseSheet PTM heat sink compound Thermal pad 2 g by Thermal Grizzly
- Be the first to review
- Item Number: FD3426805
- Part Number: TG-PS-50-40
| 2 IN STOCK |
£12.49 Incl. all UK VAT and taxes
|
Ships in 10 days Shipping to United Kingdom only £ 3.99! |
Key Features
- Outstanding thermal conductivity
- Consistently high performance
- Very long service life
- Versatile in application
- Not electrically conductive
- Easy to use
See product description
Similar Products
-
Thermal Grizzly Minus Pad 8 (Thermal Pad) 30x30x0.5mm
IN STOCK
£ 5.17 (incl. VAT) -
Thermal Grizzly Minus Pad 8 (Thermal Pad) 100x100x1.0mm
IN STOCK
£ 23.93 (incl. VAT) -
Thermal Grizzly KryoSheet 38 mm x 38 mm Thermal Pad
IN STOCK
£ 23.64 (incl. VAT) -
Thermal Grizzly KryoSheet Graphene Thermal Pad - 25 x 25 mm
IN STOCK
£ 16.59 (incl. VAT) -
SAVE £ 3.71Thermal Grizzly Kryonaut Thermal Grease Paste - 5.55 GramIN STOCK
£ 18.49
£ 14.78 (incl. VAT) -
Thermal Grizzly Minus Pad 8 (Thermal Pad) 100x100x0.5mm
IN STOCK
£ 13.05 (incl. VAT) -
Arctic MX-4 Thermal Paste Compound - 8g
IN STOCK
£ 5.01 (incl. VAT) -
Prolimatech PK-2 Nano Thermal Grease Paste - 1.5 Grams
IN STOCK
£ 1.03 (incl. VAT) -
Thermal Grizzly Carbonaut Thermal Pad 32x32x0.2mm
IN STOCK
£ 12.40 (incl. VAT) -
SAVE £ 1.70Arctic MX-4 Thermal Paste Compound - 20gIN STOCK
£ 8.52
£ 6.82 (incl. VAT) -
Thermal Grizzly Hydronaut Thermal Grease Paste - 26.0 Grams
IN STOCK
£ 32.59 (incl. VAT) -
Thermal Grizzly Carbonaut Thermal Pad 51x68x0.2mm
IN STOCK
£ 30.70 (incl. VAT) -
SAVE £ 1.90Prolimatech PK-3 Nano Aluminium Thermal Compound 1.5gIN STOCK
£ 6.30
£ 4.41 (incl. VAT) -
SAVE £ 1.21Kolink Core TX-6 Thermal Paste 5.5gIN STOCK
£ 4.06
£ 2.84 (incl. VAT) -
Prolimatech PK-3 Nano Aluminium Thermal Compound 5g
IN STOCK
£ 9.34 (incl. VAT)
Details
PhaseSheet PTM
The PhaseSheet PTM is a thermal pad based on a phase change material (PCM). The pads, which are solid at room temperature, can be easily applied and liquefy during operation, allowing them to effectively dissipate heat like a thermal paste. PhaseSheet PTM is electrically non-conductive and can therefore be used in many areas, with the primary application being in processors and graphics chips.
The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45 degrees Celsius. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material, thus minimizing the pump-out effect.
The pump-out effect is particularly pronounced when combining a copper cooler on a graphics chip because silicon and copper have different linear expansion when heated. The temperatures under load cause the heatspreader and the base plate to deform (concave or convex) and return to their original shape (straight) when they cool down. As a result, the thermal paste is slowly pressed out between the heatspreader and the base plate of the CPU cooler, for example.
- Outstanding thermal conductivity
- Consistently high performance
- Very long service life
- Versatile in application
- Not electrically conductive
- Easy to use
PhaseSheet PTM is more durable than traditional thermal pastes, but not as durable as KryoSheet, for example, which is virtually maintenance-free. PhaseSheet PTM develops and stabilizes its maximum thermal conductivity after around ten thermal cycles above 60 degrees Celsius.
Scope of Delivery
1x PhaseSheet PTM
The PhaseSheet PTM is a thermal pad based on a phase change material (PCM). The pads, which are solid at room temperature, can be easily applied and liquefy during operation, allowing them to effectively dissipate heat like a thermal paste. PhaseSheet PTM is electrically non-conductive and can therefore be used in many areas, with the primary application being in processors and graphics chips.
The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45 degrees Celsius. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material, thus minimizing the pump-out effect.
The pump-out effect is particularly pronounced when combining a copper cooler on a graphics chip because silicon and copper have different linear expansion when heated. The temperatures under load cause the heatspreader and the base plate to deform (concave or convex) and return to their original shape (straight) when they cool down. As a result, the thermal paste is slowly pressed out between the heatspreader and the base plate of the CPU cooler, for example.
- Outstanding thermal conductivity
- Consistently high performance
- Very long service life
- Versatile in application
- Not electrically conductive
- Easy to use
PhaseSheet PTM is more durable than traditional thermal pastes, but not as durable as KryoSheet, for example, which is virtually maintenance-free. PhaseSheet PTM develops and stabilizes its maximum thermal conductivity after around ten thermal cycles above 60 degrees Celsius.
Scope of Delivery
1x PhaseSheet PTM
Specifications
| WEIGHT / VOLUME | 2 g |
| OPERATING TEMPERATURE | -75 - 150 °C |
| COLOR | Grey |
