Lindy 32683 EDID emulator by Lindy

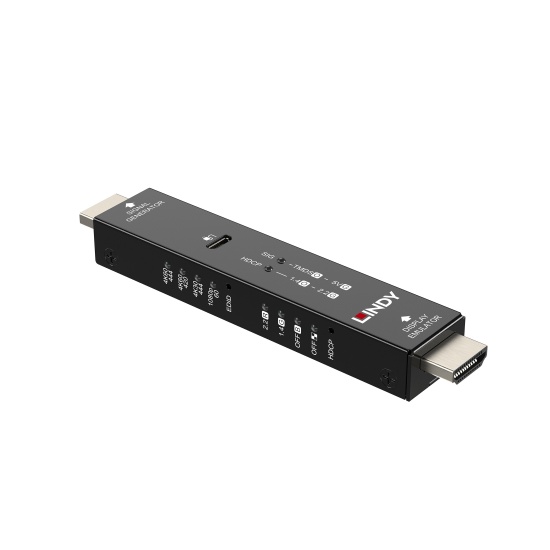

Lindy 32683 EDID emulator Image

56 IN STOCK
£88.95 Incl. all UK VAT and taxes
Ships in 11 days
Shipping to United Kingdom only £ 6.99!

Key Features

  • HDMI® signal generator with 4 video resolutions
  • Detect HDCP content and signal status (5V, TMDS)
  • Status LEDs and micro buttons selection
  • Compact, portable design, self- or USB-powered
See product description

Details

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2 and 1.4
  • EDID selection: 4K60 444, 4K60 420, 4K30 444, 1080p@60Hz
  • Control: micro buttons
  • Special Features: signal generator, display emulator, HDCP analyzer

Connectors

  • Input: HDMI® Type A (Male)
  • Output: HDMI® Type A (Male)
  • Other Connections: USB Micro-B (Female)
  • Power: USB Micro B (generator)

Physical Properties

  • Dimensions (approx.) WxDxH: 100x22x13.6mm (3.94x0.87x0.54in)
  • Housing Material: Metal
  • Net Weight: 0.04kg (0.09lb)
  • Operating Temperature: -5°C - 55°C (23°F - 131°F)
  • Storage Temperature: -25°C - 70°C (-13°F - 158°F)
  • Humidity: 10~90% RH (non condensing)
  • Power Requirements: 1.2W
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions WxDxH: 122x60x18mm (4.8x2.36x0.71in)
  • Gross Weight: 0.075kg (0.17lb)
  • Warranty (Years): 3
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDMI® 4K60 Signal Generator & Display Emulator
  • USB Type A to Micro B cable
  • Stainless pin
  • Lindy Manual

Purchasing Information

  • No.: 32683
  • EAN: 4002888326834
