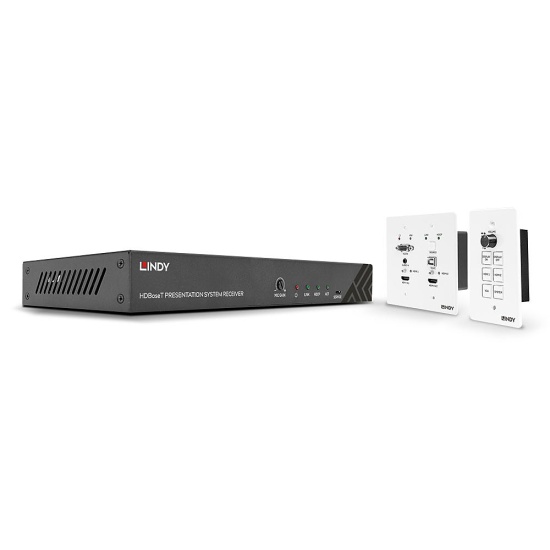

Lindy HDBaseT Presentation System with Control Keypad by Lindy

Specifications:

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 10.2Gbps
• Maximum Distance:
  • 70m (229.66ft) - 1920x1080@60Hz
  • 40m (131.23ft) - 3840x2160@60Hz
• Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
• HDCP Support: Pass-through
• EDID Pass Through: Pass-through
• Supported Audio: Pass-through
• Separate Audio Ports: -
• IR Support: -
• CEC Support: Pass-Through
• Serial Interface: -
• Transmission Protocol: HDBaseT
• Transmission Medium: 1 x Cat.5e/6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: VS210
• Special Features: -

Connectors:

• Transmitter Input: 2x HDMI (Female), 1x VGA (Female), 1x USB Type B (Female), 1x 3.5mm Audio (Female)
• Transmitter Output: 1x RJ45 (Female)
• Receiver Input: 1x RJ45 (Female), 1x RS-232 (Terminal Block), 1x Mic In (Terminal Block)
• Receiver Output: 1x HDMI (Female), 1x USB Type A (Female), 1 Relay (Terminal Block), 1x Audio out (Terminal Block), 1x Amplifier output (Terminal Block)
• Bi-directional Ports: -
• Power: 5.5/2.1mm DC socket

Physical Properties:

• Dimensions (approx.) WxDxH:
  • Transmitter: 115.9mm x 114.3mm x 38.7mm
  • Receiver: 250mm x 104mm x 30mm
  • Control Plate: 70mm x 32mm x 115mm
• Housing Material: Metal
• Net Weight: 1.227kg (2.71lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Power Requirements: 24VDC 3.75A
• Colour: Transmitter: White, Receiver: Black, Control Plate: White

Miscellaneous:

• Packaging Type: Carton box
• Packaging Dimensions: 300x275x110mm (11.81x10.83x4.33in)
• Gross Weight: 2.143kg (4.72lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH

Package Content:

• 1 x HDBaseT Transmitter Wall Plate
• 1x HDBaseT Receiver
• 1x Wall Plate Control Panel
• 1x 24VDC 3.75A Power supply, barrel size 5.5/2.1mm
• 4x 3-Pin Terminal Block, 1x 4-Pin Amplifier Terminal Block
• 1x Lindy QIG

Purchasing Information:

• No.: 38288
• EAN: 4002888382885
