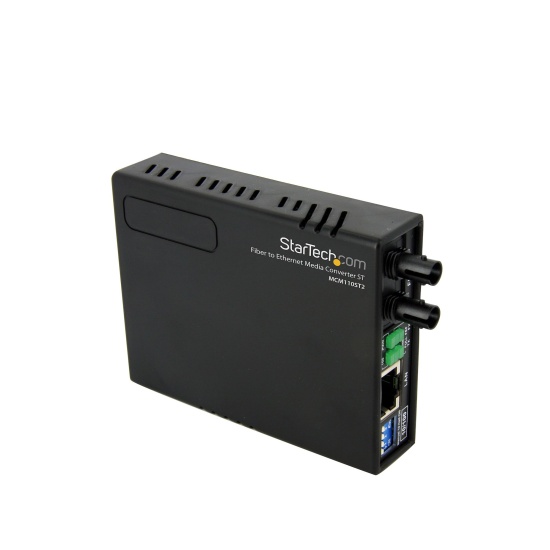

StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - TAA by StarTech
- Be the first to review
- Item Number: FD590663
- Part Number: MCM110ST2GB
| 9 IN STOCK |
£88.31 Incl. all UK VAT and taxes
|
Ships in 5 days Shipping to United Kingdom only £ 6.99! |
Key Features
- Includes both the UK and EU power plug adapters
- 1310nm wavelength
- Auto detects half/full duplex transfer mode from the TX port.
- Auto negotiation or Force 10/100 Mbps and MDI/MDI-X (Crossover for TX port).
- Compatible with 3COM™, Cisco™, Lucent™ and Nortel™ networks
- Forward 9K jumbo packets in converter mode
- It’s compact design and weight makes it portable and unobtrusive to carry
- LED Indicators for simple Ethernet/Fiber network link monitoring
- Provides switch configuration of half/full duplex transfer mode for FX port.
- Support flow control (Pause)
See product description
Details
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Specifications
| DATA TRANSFER SPEED | 100 Mbit/s |
| NETWORK STANDARDS | IEEE 802.3, IEEE 802.3u |
| TEMPERATURE RANGES | 0 - 50 °C |
| HUMIDITY RANGES | 10 - 90% |
| COLOR | Black |
| CONNECTIVITY | Wired |
