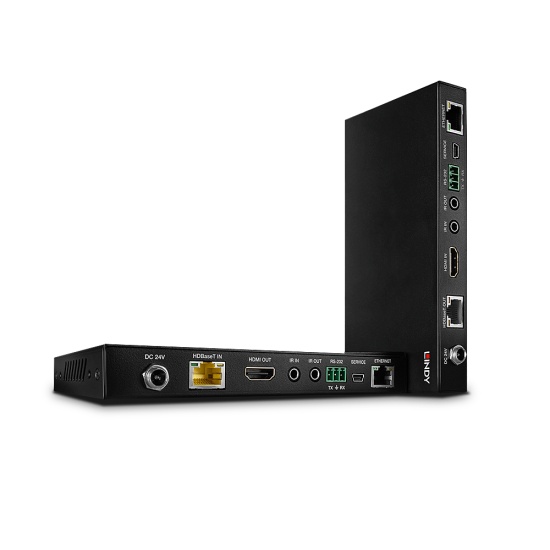

Lindy 100m C6 HDBaseT HDMI 2.0 18G & IR Extender by Lindy
- Be the first to review
- Item Number: FD3040416
- Part Number: 38340
| OUT OF STOCK |
£466.53 Incl. all UK VAT and taxes
Key Features
- HDBaseT HDMI 2.0 18G & IR Extender that delivers signals over distances up to 100m using Cat.6 cable
- Supports HDMI 2.0 resolutions up to 4096x2160 @60Hz 4:4:4 8bit with HDR & HDCP 2.2
- Extends HDMI, bi-directional IR, RS232 and Ethernet signals
- Integrated PoC (Power over Cat.6) functionality requires only a single power supply
See product description
Details
Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
RS-232, CEC & Ethernet pass-through and bi-directional IR for simple control
Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
2 year warranty
The Lindy 100m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender with PoC, Transmitter is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
100m: 1920x1080@60Hz 4:4:4 8bit
70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
RS-232, CEC & Ethernet pass-through and bi-directional IR for simple control
Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
2 year warranty
The Lindy 100m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender with PoC, Transmitter is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
100m: 1920x1080@60Hz 4:4:4 8bit
70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Specifications
| MAXIMUM RESOLUTION | 4096 x 2160 pixels |
| CABLE TYPES | Cat6 |
| MAXIMUM TRANSFER DISTANCE | 100 m |
| SUPPORTED VIDEO MODES | 1080p, 2160p |
| BANDWIDTH | 18 Gbit/s |
| MATERIAL | Metal |
| COLOUR | Black |
