Lindy 36520 DisplayPort cable 1 m Black by Lindy

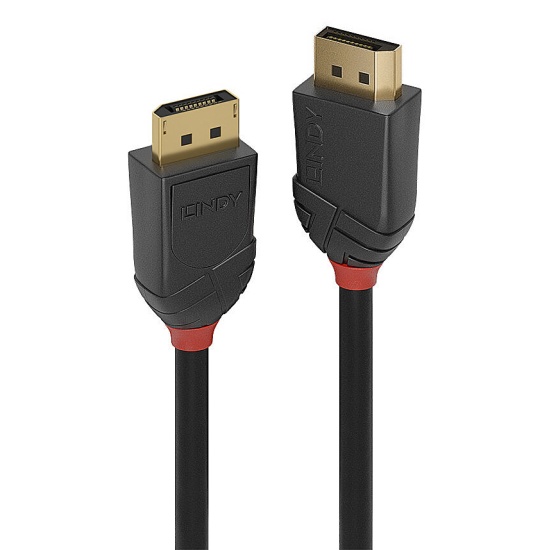

Lindy 36520 DisplayPort cable 1 m Black Image

100+ IN STOCK
£27.39 Incl. all UK VAT and taxes
Ships in 13 days
Shipping to United Kingdom only £ 3.99!

Key Features

  • Entry level DisplayPort 2.1 cable for home and small office applications
  • Supports resolutions up to 16K@60Hz 4:4:4 10-Bit with DSC (Display Screen Compression)
  • Robust ABS housing 24K gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant bare copper 30AWG conductors
See full specifications
See product description

Similar Products

Details

Connectors

  • Connector A: DisplayPort Male
  • Connector B: DisplayPort Male
  • Housing Material: ABS
  • Connector Plating: 24K Gold 15µm
  • Pin Construction: Gold Plated
  • Pin Plating: 24K Gold 3µm
  • Dimensions (approx.) WxDxH: 20.7x42.6x13mm (0.81x1.68x0.51in)

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: DisplayPort 2.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7mm (0.27in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 30 AWG
  • Shielding: Aluminium Mylar

Specifications

  • Supported Bandwidth: 80Gbps
  • Maximum Resolution: 16360 x 8640 (16K) @ 60Hz, 4:4:4, 10-bit
  • Nominal Attenuation:
    • 100 MHz - 450 MHz < 5.1 dB
    • 450 MHz - 8100 MHz  < 33.28 dB
    • 8100 MHz - 13500 MHz < 38.0 dB
  • Minumum Band Radius: 48mm (1.89in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, UL

Purchasing Information

  • No.: 36520
  • EAN: 4002888365208

This product is also available in other lengths

  • 36520 - 1m (3.28ft)
  • 36521 - 2m (6.56ft)
  • 36522 - 3m (9.84ft)
Specifications
LENGTH 1 m
MATERIAL Polyvinyl chloride (PVC)
GENDER Male
COLOR Black
RESOLUTION 16360 x 8640 pixels
CONNECTORS DisplayPort
