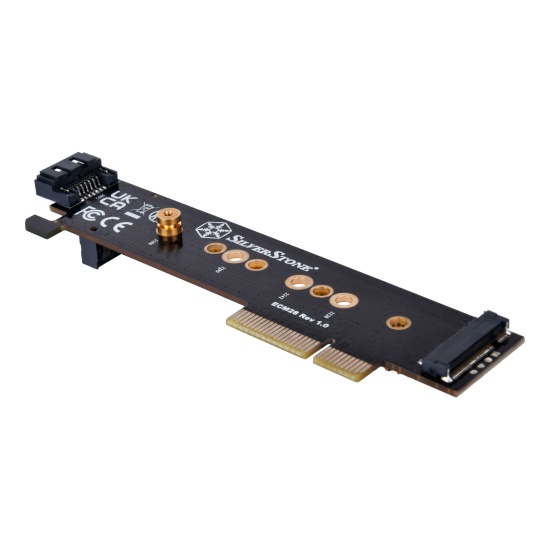

Silverstone ECM28 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) by Silverstone
- Be the first to review
- Item Number: FD3112052
- Part Number: SST-ECM28
| 1 IN STOCK |
£26.49 Incl. all UK VAT and taxes
|
Ships in 10 days Shipping to United Kingdom only £ 2.99! |
Key Features
- Suits 1U form factor chassis at only 32mm total height
- Support 1 x NVMe M.2 SSD (M key) utilizing PCIe x4 interface
- Support 1 x SATA M.2 SSD (B key)
- Allows concurrent usage of both M.2 SSD slots
- Supports PCIe Gen4
- Supports SATA 6Gbps
- Built-in LED status indicator
- Supports PCIe CLKREQ# function
Details
32mm total height, fits easily inside 1U form factor chassis
Supports 2230, 2242, 2260, and 2280 lengths M.2 SSD
Built-in LED status indicator
Remark
There are three types of M.2 SSDs, please make sure you know the difference between them and whether your system/motherboard support them before pairing these with your SilverStone product.
Legacy SATA (B key)
Used for SATA SSDs, and interfaced through the AHCI driver and legacy SATA 3.0 (6 Gbit/s) port exposed through the M.2 connector.
PCI Express using AHCI (M key)
Used for PCI Express SSDs and interfaced through the AHCI driver and provided PCI Express lanes, providing backward compatibility with widespread SATA support in operating systems at the cost of not delivering optimal performance by using AHCI for accessing PCI Express SSDs.
PCI Express using NVMe (M key)
Used for PCI Express SSDs and interfaced through the NVMe driver and provided PCI Express lanes, as a high-performance and scalable host controller interface designed and optimized especially for interfacing with PCI Express SSDs. NVMe has been designed from the ground up, capitalizing on the low latency and parallelism of PCI Express SSDs, and complementing the parallelism of contemporary CPUs, platforms and applications.
Supports 2230, 2242, 2260, and 2280 lengths M.2 SSD
Built-in LED status indicator
Remark
There are three types of M.2 SSDs, please make sure you know the difference between them and whether your system/motherboard support them before pairing these with your SilverStone product.
Legacy SATA (B key)
Used for SATA SSDs, and interfaced through the AHCI driver and legacy SATA 3.0 (6 Gbit/s) port exposed through the M.2 connector.
PCI Express using AHCI (M key)
Used for PCI Express SSDs and interfaced through the AHCI driver and provided PCI Express lanes, providing backward compatibility with widespread SATA support in operating systems at the cost of not delivering optimal performance by using AHCI for accessing PCI Express SSDs.
PCI Express using NVMe (M key)
Used for PCI Express SSDs and interfaced through the NVMe driver and provided PCI Express lanes, as a high-performance and scalable host controller interface designed and optimized especially for interfacing with PCI Express SSDs. NVMe has been designed from the ground up, capitalizing on the low latency and parallelism of PCI Express SSDs, and complementing the parallelism of contemporary CPUs, platforms and applications.
