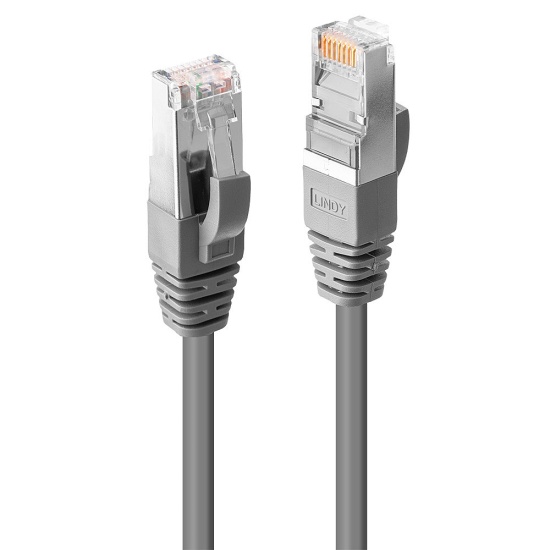

Lindy 90m Cat.6 S/FTP LSZH Cable, Grey by Lindy

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

Cable Construction

• Length: 90m (295.28ft)
• Colour: Grey
• Type: Cat.6
• Jacket Diameter: 6.2mm (0.24in)
• Jacket Material: LSZH
• Conductor Material: Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium / Polyester

Specifications

• Supported Bandwidth: 250MHz
• Nominal Attenuation: 38.3dB/100m @250MHz
• Minimum Bend Radius: 18.6mm (0.74in)
• Operating Temperature: -25°C - 60°C (-43F - 140°F)
• Storage Temperature: -25°C - 60°C (-43F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No.: 45596
• EAN: 4002888455961

This product is also available in other lengths:

• 45580 - 0.3m (0.98ft)
• 45581 - 0.5m (1.64ft)
• 45582 - 1m (3.28ft)
• 45583 - 2m (6.56ft)
• 45584 - 3m (9.84ft)
• 45585 - 5m (16.44ft)
• 45586 - 7.5m (24.61ft)
• 45587 - 10m (32.81ft)
• 45588 - 15m (49.21ft)
• 45589 - 20m (65.62ft)
• 45590 - 30m (98.43ft)
• 45591 - 40m (131.23ft)
• 45592 - 50m (164.04ft)
• 45593 - 60m (196.85ft)
• 45594 - 70m (229.66ft)
• 45595 - 80m (262.67ft)
• 45596 - 90m (295.28ft)
• 45597 - 100m (328.08ft)
