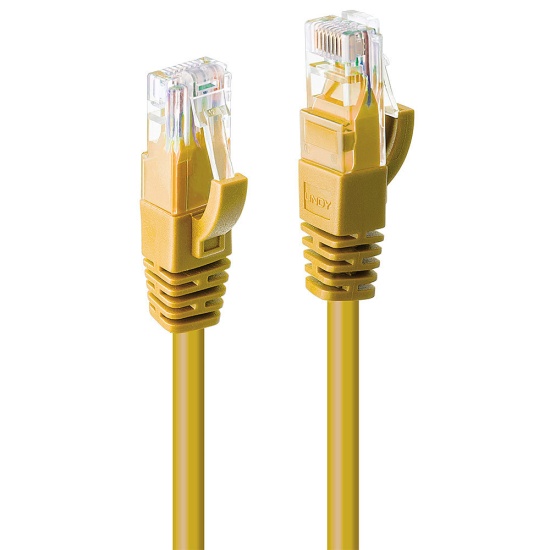

Lindy 15m Cat.6 U/UTP Network Cable, Yellow by Lindy

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: -
• Pin Construction: Copper Alloy
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)

Cable Construction

• Length: 15m (49.21ft)
• Colour: Yellow
• Type: Cat.6
• Jacket Diameter: 5.8mm (0.23in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 24AWG
• Shielding: -

Specifications

• Supported Bandwidth: 250MHz
• Nominal Attenuation: 32.8dB/100m @250MHz
• Minimum Band Radius: 69mm (2.72in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 75°C (-4°F - 167°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL, California Proposition 65

Purchasing Information

• No.: 48068
• EAN: 4002888480680

This product is also available in other lengths

• 48060 - 0.3m (0.98ft)
• 48061 - 0.5m (1.64ft)
• 48062 - 1m (3.28ft)
• 48063 - 2m (6.56ft)
• 48064 - 3m (9.84ft)
• 48065 - 5m (16.44ft)
• 48066 - 7.5m (24.61ft)
• 48067 - 10m (32.81ft)
• 48068 - 15m (49.21ft)
• 48069 - 20m (65.62ft)
• 48070 - 30m (98.43ft)
