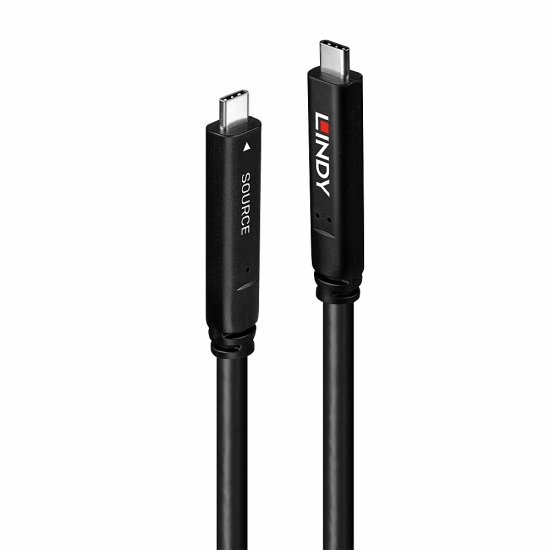

Lindy 15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable by Lindy

Be the first to review
Item Number: FD3559640
Part Number: 43399

Lindy 15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable Image

16 IN STOCK

£295.04 Incl. all UK VAT and taxes

Ships in 7 days
Shipping to United Kingdom only £ 5.99!

Key Features

8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable for data and video extension
Data transfer rates up to 5Gbps
Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
Supports Power Delivery up to 60W (20V 3A)

See full specifications
See product description

Similar Products

Silicon Power 100cm Boost Link PVC LK15CC USB Cable Type-C to Type-C Black

IN STOCK

1 review

£ 3.08 (incl. VAT)
StarTech 3ft Mini USB2.0 Type-A to Mini USB Type-B Cable Grey

IN STOCK

Be first to rate

£ 6.24 (incl. VAT)
StarTech.com 3ft eSATA Hard Drive to USB 3.0 Adapter Cable - SATA 6 Gbps

IN STOCK

1 review

£ 24.52 (incl. VAT)
C2G 25FT USB Type-A Female to USB Type-A Male Active Extension Cable - Black

IN STOCK

Be first to rate

£ 21.13 (incl. VAT)
Belkin Pro Series Hi-Speed USB2.0 Extension Cable 3.0m Black

IN STOCK

Be first to rate

£ 5.46 (incl. VAT)
C2G 10FT USB Type-C Male to USB Type-B Male Cable - Black

IN STOCK

Be first to rate

£ 20.83 (incl. VAT)
Monoprice Select USB 3.0 Type-C to USB 3.0 Type-B Cable - 6ft

IN STOCK

Be first to rate

£ 7.50 (incl. VAT)
C2G 6.6ft USB 2.0-A to USB-B Cable - White

IN STOCK

Be first to rate

£ 83.42 (incl. VAT)
C2G 16.4FT Ultima USB Type-A Male to USB Mini Type-B Male Cable - Charcoal

IN STOCK

Be first to rate

£ 15.59 (incl. VAT)
ClingOn 5-Pack. For ClingOn USB Type-C Connector Thunderbolt 3 / USB-C

IN STOCK

1 review

£ 39.15 (incl. VAT)
C2G 6FT USB Mini Type-B Male to 2 x USB Type-A Male Y Cable - Black

IN STOCK

Be first to rate

£ 15.17 (incl. VAT)
StarTech.com 5in Micro USB to USB OTG Host Adapter M/F USB Cable

IN STOCK

Be first to rate

£ 4.84 (incl. VAT)
C2G 10FT USB Type-C Male to Micro USB Type-B Male Cable

IN STOCK

Be first to rate

£ 13.41 (incl. VAT)
C2G Ultima 6.6FT USB Type-A Male to USB Type-B Male Cable - Charcoal

IN STOCK

Be first to rate

£ 10.07 (incl. VAT)
C2G 3FT USB Type-C Male to USB Type-B Male Cable - Black

IN STOCK

Be first to rate

£ 11.88 (incl. VAT)

Details

Connectors

Connector A: USB Type C Male
Connector B: USB Type C Male
Power: PD 20V / 3A (60W)
Housing Material: Plastic
Connector Plating: Stainless Steel + Solder Nickel 50u'' min.
Pin Construction: Copper Alloy + Mating area Au
Pin Plating: Mating area: 2µ'' Au min.
Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

Cable Construction

Length: 15m (49.21ft)
Standard: USB 3.2 / 3.1 Gen 2
Colour: Black
Type: Round
Jacket Diameter: 6.5mm (0.26in)
Jacket Material: PVC
Conductor Material: -
Conductor Gauge: 21AWG*3 (Power)
Shielding: Tinned Copper

Specifications

Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes)
Maximum Resolution: 4K 3840x2160@144Hz
Nominal Attenuation: <10dB/km@850nm, <8dB/km@1300nm
Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
Operating Temperature: 5°C to 60°C (41°F - 140°F)
Storage Temperature: -20°C to 80°C (-4°F - 176°F)
Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
Transmission Technology: 850nm Laser Optical

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
Net Weight: 1.2kg (2.65lb)
Gross Weight: 1.4kg (3.09lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Packaging Contents

15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
Lindy manual

Purchasing Information

No.: 43399
EAN: 4002888433990

Specifications

LENGTH	15 m
LENGTH	15 m
USB VERSION	USB 3.2 Gen 1 (3.1 Gen 1)
USB VERSION	USB 3.2 Gen 1 (3.1 Gen 1)
LEFT CONNECTOR	USB C
LEFT CONNECTOR	USB C
RIGHT CONNECTOR	USB C
RIGHT CONNECTOR	USB C
DATA TRANSFER RATE	5000 Mbit/s
DATA TRANSFER RATE	5000 Mbit/s
COLOR	Black
COLOR	Black
