MSI B840M GAMING PLUS WIFI6E motherboard AMD B840 Socket AM5 micro ATX by MSI

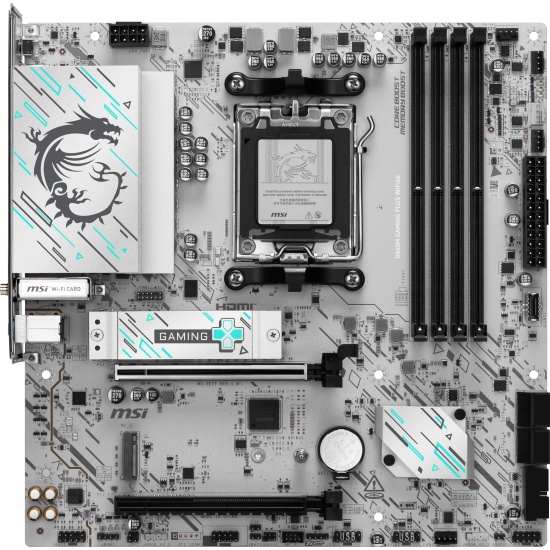

MSI B840M GAMING PLUS WIFI6E motherboard AMD B840 Socket AM5 micro ATX Image

16 IN STOCK
£148.31 Incl. all UK VAT and taxes
Ships in 9 days
Shipping to United Kingdom only £ 5.99!

Key Features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr II are built for high performance system and non-stop experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
  • High-speed Connectivity: Wi-Fi 6E with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
See full specifications
See product description

Similar Products

Details
B840M GAMING PLUS WIFI6E
The B840M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

7+2+1 P-PAK Power System
Unleash and sustain maximum performance with a flagship VRM design built with a total of 7 + 2 + 1 digital power phases. With a 8-pin power connector, B840M GAMING PLUS WIFI6E is ready for the challenge of heavy-loading tasks.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Specifications
FORM FACTOR micro ATX
SOCKET TYPE Socket AM5
COMPATIBLE PROCESSORS AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
CHIPSET AMD
MEMORY STANDARD DDR5-SDRAM
MEMORY SLOTS 4
MEMORY CHANNELS Dual-channel
MAXIMUM INTERNAL MEMORY 256 GB
PORTS 4
ETHERNET Yes
ONBOARD USB 2.0 4
ONBOARD USB 3.1 2
M.2 SLOTS M.2, Micro SATA III
SATA III CONNECTORS 4
CHASSIS FAN CONNECTORS 5
RGB LED HEADER Yes
AUDIO CHIPSET Realtek ALC897
AUDIO CHANNELS 7.1 channels
PCI EXPRESS X16 2
RAID 0, 1, 10
SUPPORTED OPERATING SYSTEMS Windows 11 x64
BLUETOOTH Yes
WIFI Yes
DIMENSIONS 243.8 mm
