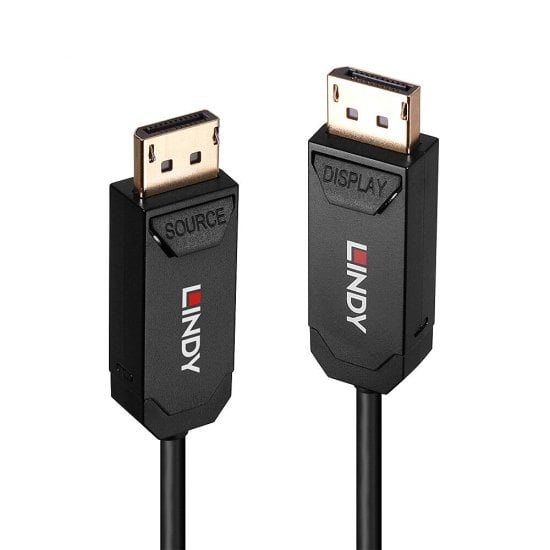

Lindy 38522 DisplayPort cable 20 m Black by Lindy


Lindy 38522 DisplayPort cable 20 m Black Image

OUT OF STOCK
Receive Stock Notice:
£193.89 Incl. all UK VAT and taxes

Key Features

  • Combines copper and fibre optic cable for a hybrid, long distance DisplayPort connectivity solution
  • Supports resolutions up to 4K@144Hz, 8K@60Hz
  • DP2.0 standard with UHBR10 support, 40Gbps bandwidth (4 lanes, 10Gbps per channel)
  • Flexible and robust cable structure for any kind of installations
See full specifications
See product description

Similar Products

Details
Connectors
  • Connector A: DisplayPort (Male)
  • Connector B: DisplayPort (Male)
  • Housing Material: PVC
  • Connector Plating: Gold Plated
  • Pin Construction: Gold Plated
  • Pin Plating: Gold Plated
  • Dimensions (approx.) WxDxH: DP Connector: 19.8x47.8x12mm (0.78x1.88x0.47in)
Cable Construction
  • Length: 20m (65.62ft)
  • Standard: DisplayPort 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.0mm (0.16in)
  • Jacket Material: PVC
  • Conductor Material: Fiber and Copper
  • Conductor Gauge: 24AWG
  • Shielding: -
Specifications
  • Supported Bandwidth: 40Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 3840x2160@144Hz 4:4:4 10bit
  • Nominal Attenuation: =10dB/km@850nm, =8dB/km@1300nm
  • Minimum Bend Radius: 50mm (1.97in)
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Miscellaneous
  • Packaging Type: Carton Box
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Purchasing Information
  • No.: 38522
  • EAN: 4002888385220
This product is also available in other lengths:
  • 38520 - 10m (32.81ft)
  • 38521 - 15m (49.21ft)
  • 38523 - 30m (98.42ft)
  • 38524 - 40m (131.23ft)
  • 38525 - 50m (164.04ft)
Specifications
LENGTH 20 m
MATERIAL Polyvinyl chloride (PVC)
GENDER Male
COLOR Black
RESOLUTION 7680 x 4320 pixels
CONNECTORS DisplayPort
