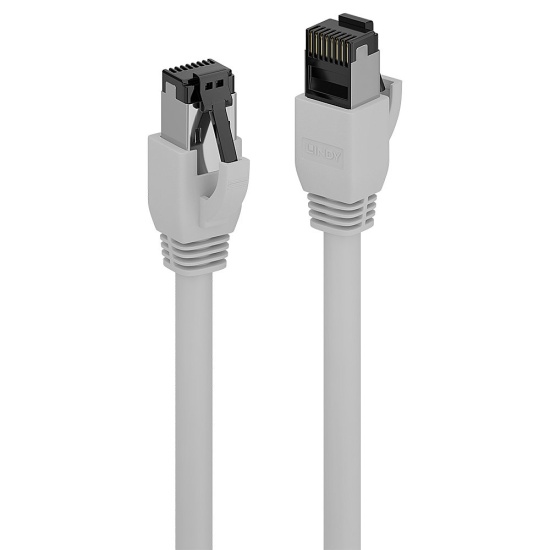

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey by Lindy

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction:  Bare Copper
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 12x38.5x17mm (0.47x1.52x0.67in)

Cable Construction

• Length: 5m (16.44ft)
• Standard: Cat.8.1
• Colour: Grey
• Type: Round
• Jacket Diameter: 7.5mm (0.30in)
• Jacket Material: LSZH
• Conductor Material: Bare Copper
• Conductor Gauge: 24AWG
• Shielding: AL Foil

Specifications

• Supported Bandwidth: 2000MHz
• Nominal Attenuation: 24dB/30m @2000MHz
• Minimum Band Radius: 60mm (2.36in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 75°C (-4°F - 167°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No.: 47436
• EAN: 4002888474368

This product is also available in other lengths

• 47430 - 0.3m (0.98ft)
• 47431 - 0.5m (1.64ft)
• 47432 - 1m (3.28ft)
• 47433 - 1.5m (4.92ft)
• 47434- 2m (6.56ft)
• 47435 - 3m (9.84ft)
• 47436 - 5m (16.44ft)
