Lindy Bi-directional Wireless IR Extender, Transceiver by Lindy

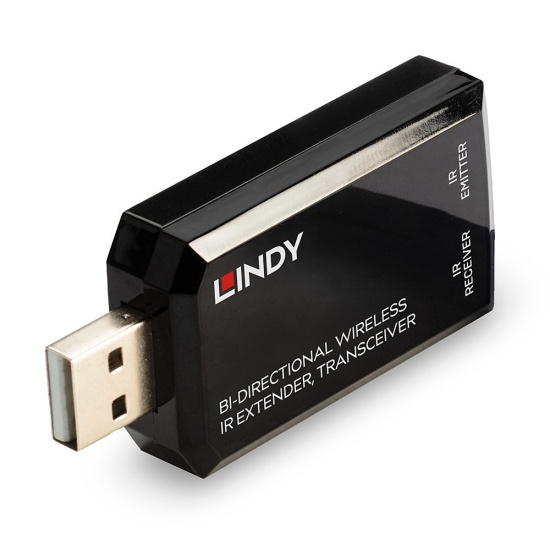

Lindy Bi-directional Wireless IR Extender, Transceiver Image

OUT OF STOCK
Receive Stock Notice:
£44.18 Incl. all UK VAT and taxes

Key Features

  • Extends bi-directional IR signals up to 150m
  • Use 2 or more transceivers to create one to one, one to many, and many to many configurations (sold individually)
  • 10 Independent RF channels ensure multiple transceivers can be used in smaller environments without interference
  • Low power requirement allows for a hassle-free installation
  • 2 year warranty
See full specifications
See product description

Details

Specifications

  • AV Interface: IR
  • Interface Standard: -
  • Supported Bandwidth: -
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: -
  • HDCP Support: -
  • EDID Pass Through: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • IR Support: 20~60KHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: 866MHz RF
  • Transmission Medium: FSK Wireless
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: AMICCOM A7129
  • Special Features: Bi-directional 1 - 1 and 1 - Many Extension

Connectors

  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: -
  • Receiver Output: -
  • Bi-directional Ports: 3.5mm IR (Female)
  • Power: USB Powered

Physical Properties

  • Dimensions (approx.) WxDxH: 30x13x63mm (1.18x0.51x2.48in)
  • Housing Material: Plastic
  • Net Weight: 0.07kg (0.15lb)
  • Operating Temperature: -40°C - 85°C (-40°F - 185°F)
  • Storage Temperature: -55°C - 125°C (-67°F - 257°F)
  • Humidity: 10-85% RH (non-condensing)
  • Power Requirements: 5V 0.5A
  • MTBF: 87.600 hours
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 236x255x10mm (9.29x10.04x0.39in)
  • Gross Weight: 0.09kg (0.2lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS, REACH, California Proposition 65, TAA

Package Content

  • Bi-directional Wireless IR Transceiver
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • USB Type A Male to Female Cable, 0.3m
  • Lindy Manual

Purchasing Information

  • No.: 38331
  • EAN: 4002888383318

Specifications
MAXIMUM TRANSFER DISTANCE 150 m
MATERIAL Plastic
COLOUR Black
