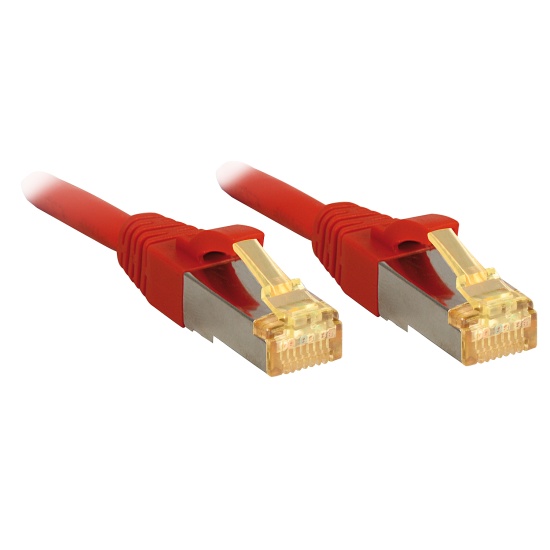

Lindy 47301 networking cable Red 30 m Cat7 S/FTP (S-STP) by Lindy

Connectors

• Connector A: RJ45 Male Cat.6A
• Connector B: RJ45 Male Cat.6A
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Copper Alloy
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)

Cable Construction

• Length: 30m (98.43ft)
• Colour: Red
• Type: Cat.7
• Jacket Diameter: 6.5mm (0.26in)
• Jacket Material: LSZH
• Conductor Material: Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium Braid

Specifications

• Supported Bandwidth: 600MHz
• Nominal Attenuation: 51.4dB/100m @600MHz
• Minimum Band Radius: 78mm (3.07in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 75°C (-4°F - 167°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL, California Proposition 65

Purchasing Information

• No.: 47301
• EAN: 4002888473019

This product is also available in other lengths

• 47290 - 0.3m (0.98ft)
• 47291 - 0.5m (1.64ft)
• 47292 - 1m (3.28ft)
• 47293 - 1.5m (4.92ft)
• 47294- 2m (6.56ft)
• 47295 - 3m (9.84ft)
• 47296 - 5m (16.44ft)
• 47297 - 7.5m (24.61ft)
• 47298 - 10m (32.81ft)
• 47299 - 15m (49.21ft)
• 47300 - 20m (65.62ft)
• 47301 - 30m (98.43ft)
