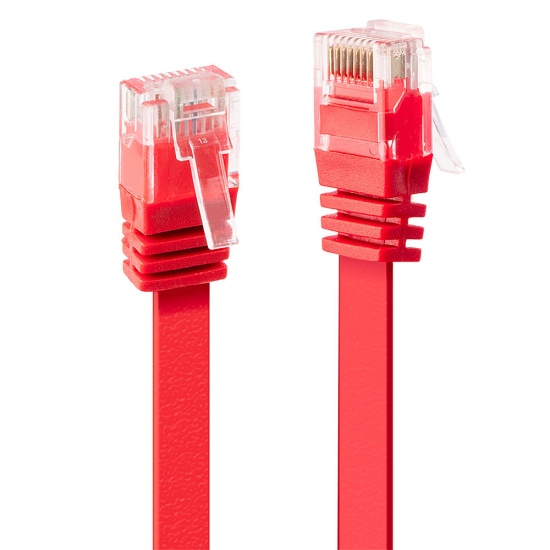

Lindy 1m Cat.6 U/UTP Flat Cable, Red by Lindy

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: -
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x22.7x6.5mm (0.46x0.89x0.26in)

Cable Construction

• Length: 1m (3.28ft)
• Colour: Red
• Type: Cat.6
• Jacket Diameter: 6.05x1.40mm (0.24x0.06in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 32AWG
• Shielding: -

Specifications

• Supported Bandwidth: 250MHz
• Nominal Attenuation: 35.9dB/100m @ 250MHz
• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: -10°C - 60°C (14F - 140°F)
• Storage Temperature: -10°C - 40°C (14F - 104°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL, California Proposition 65
• Purchasing Information
• No.: 47511
• EAN: 4002888475112

This product is also available in other lengths:

• 47510 - 0.3m (0.98ft)
• 47511 - 1m (3.28ft)
• 47512 - 2m (6.56ft)
• 47513 - 3m (9.84ft)
• 47514 - 5m (16.44ft)
• 47515 - 10m (32.81ft)
