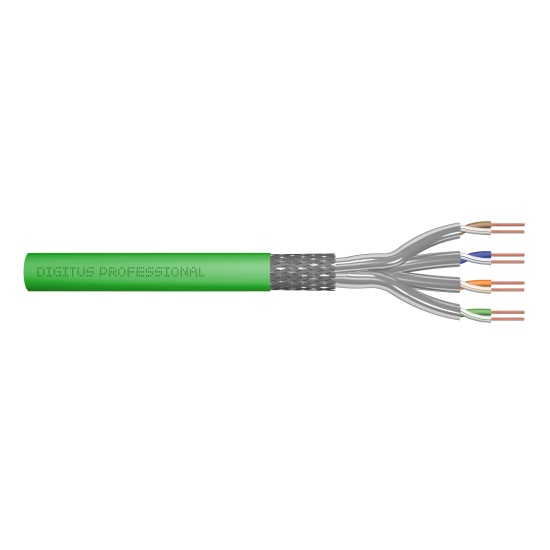

Digitus CAT 8.2 S/FTP installation cable, 100 m, Simplex, Dca by Digitus

Key Features

• Physical properties:
• Conductor: Bare annealed copper, solid AWG 22/1
• Insulation: SFS-PE (foamed polyethylene sheath)
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Shielding of the individual pairs: Aluminum-covered polyester film, 100% coverage
• Overall shielding: Tinned copper wire braid
• Outer sheath: Dca acc. to EN 50575; LSZH
• Outer sheath diameter (nominal): 0.55 mm nominal
• Outer sheath color: yellow
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Transport and storage temperature range: -20 °C to +75 °C
• Operating temperature range: -20 °C bis +60 °C
• Installation temperature range: 0 °C to +50 °C
• Overall diameter Simplex (nominal): 7.9 mm nominal (Dca)
• Weight (kg/km): 65 kg/km
• Electrical properties:
• Impedance: 100±15 Ohm @ 1 - 2000MHz
• Capacitance: 99 pF/30m nominal @ 1 KHz
• Capacitance unbalance (pair-ground): Is not specified
• Insulation resistance: 5 GOhm x km min.
• DC resistance: 2.4Ohm/30m max. (4% max. resistance unbalance)
• DC loop resistance: 5.6 Ohm/24m max. (3% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: CA-Type 1
• Signal propagation delay: 171 nS/30 m max.
• Propagation delay: 13,5 nS/130 m max.
• Separating class: „d“ acc. to EN 50174-2
• NVP: 79%
