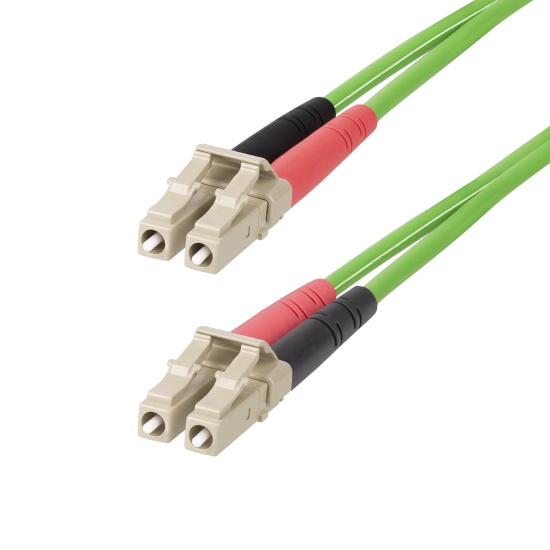

StarTech.com 20m (65.6ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex LOMMF Zipcord, VCSEL, 40G/100G, LSZH Fiber Jumper Cord by StarTech
- Be the first to review
- Item Number: FD3304366
- Part Number: LCLCL-20M-OM5-FIBER
| 5 IN STOCK |
£64.82 Incl. all UK VAT and taxes
|
Ships in 5 days Shipping to United Kingdom only £ 5.99! |
Key Features
- OM5 FIBER CABLE: OM5 LOMMF Cable is optimized for advanced 40/100Gbps fiber networks; Extended 850-953nm wavelength support enables SWDM (short wavelength division multiplexing) for greater channel isolation, enhancing performance capacity beyond OM4 cables
- QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Zipcord design, color-coded connectors for polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 6cm and 3cm when unloaded
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 2.4dB/km meets or exceeds industry standards
- WIDE COMPATIBILITY: OM5 multimode cable supports 10/40/100G networks; Backward compatible with OM4/OM3; High micro-bending resistance facilitates tight bends in intricate installations, ideal for fiber switches/servers, SANs, and SFP+/QSFP+/QSFP28 modules
- SPECS: 20m (65.6ft); OM5; LC/LC (UPC); 50/125µm; 850-953nm VCSEL/1300nm LED; Modal Bandwidth: 4700MHz.km (850nm), 2470MHz.km (953nm); Insertion Loss: ≤0.3dB; Return Loss: ≥30dB; Cable OD: 2.9mm; Bend Radius: 6cm/2.4in (loaded), 3cm/1.2in (unloaded)
See product description
Similar Products
-
Tripp Lite 3FT RJ45 Male Cat6 Gigabit Snagless Molded Patch Cable - Purple
IN STOCK
£ 3.24 (incl. VAT) -
1FT Belkin RJ45 Male To RJ45 Male Unshielded Twisted CAT6 Networking Cable - Yellow
IN STOCK
£ 1.70 (incl. VAT) -
C2G Cat6 550MHz 2.1 Meter (7 FT) Snagless Networking Patch Ethernet Cable Black
IN STOCK
£ 5.39 (incl. VAT) -
Tripp Lite 10 ft (3.05 m) N204-S10-BL-UP Up-Angle Cat6 Gigabit Molded Slim UTP Ethernet Cable (RJ45 Right-Angle Up M to RJ45 M) Blue
IN STOCK
£ 7.82 (incl. VAT) -
C2G Unshielded Non-Booted Cat6 Ethernet Network Cable - Blue - 10ft
IN STOCK
£ 6.18 (incl. VAT) -
C2G Unshielded Snagless Cat6 Ethernet Network Cable - Green - 5ft
IN STOCK
£ 4.84 (incl. VAT) -
C2G Unshielded Snagless Cat5e Ethernet Network Cable - Yellow - 3ft
IN STOCK
£ 3.05 (incl. VAT) -
3FT C2G Cat6 UTP Slim Network Cable - Purple
IN STOCK
£ 5.39 (incl. VAT) -
8FT C2G RJ-45 Male To RJ-45 Male Cat6a Snagless Unshielded Network Patch Ethernet Cable - White
IN STOCK
£ 14.31 (incl. VAT) -
Tripp Lite 10FT RJ45 Male Cat6 Gigabit Snagless Molded Patch Cable - Grey
IN STOCK
£ 5.61 (incl. VAT) -
Lindy U/UTP Cat6 RJ45 Patch Cable 2m – Grey
IN STOCK
£ 3.55 (incl. VAT) -
6IN C2G RJ-45 Male To RJ-45 Male Cat5e Snagless Unshielded Network Patch Cable - Green
IN STOCK
£ 1.23 (incl. VAT) -
StarTech.com 10 Gigabit Shielded (SFTP) Cat6a RJ45 Patch Cable 0.5m – Aqua
IN STOCK
£ 9.00 (incl. VAT) -
15FT C2G RJ45 TO RJ45 Cat6 Snagless Unshielded Network Patch Cable - Green
IN STOCK
£ 13.71 (incl. VAT) -
Lindy U/UTP Cat6 RJ45 Patch Cable 1m – Red
IN STOCK
£ 2.17 (incl. VAT)
Details
Enhance the performance capabilities of SWDM applications over an OM5 fiber network
OM5 LC to LC Multimode Duplex Fiber Optic Patch cable facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is ideal for 850-953 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM4 and OM3 10G networks, ensuring a reliable connection in legacy fiber environments.
LSZH Cable Jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OM5 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OM5 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
OM5 LC to LC Multimode Duplex Fiber Optic Patch cable facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is ideal for 850-953 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM4 and OM3 10G networks, ensuring a reliable connection in legacy fiber environments.
LSZH Cable Jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OM5 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OM5 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
Specifications
| LENGTH | 20 m |
| LEFT CONNECTOR | LC |
| RIGHT CONNECTOR | LC |
| MATERIAL | Low smoke zero halogen (LSZH) |
