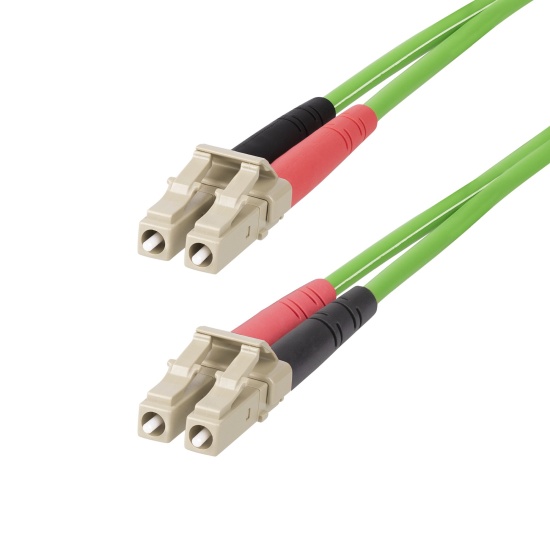

StarTech.com 7m (22.9ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex LOMMF Zipcord, VCSEL, 40G/100G, LSZH Fiber Jumper Cord by StarTech
- Be the first to review
- Item Number: FD3304359
- Part Number: LCLCL-7M-OM5-FIBER
| 40 IN STOCK |
£49.80 Incl. all UK VAT and taxes
|
Ships in 15 days Shipping to United Kingdom only £ 5.99! |
Key Features
- OM5 FIBER CABLE: OM5 LOMMF Cable is optimized for advanced 40/100Gbps fiber networks; Extended 850-953nm wavelength support enables SWDM (short wavelength division multiplexing) for greater channel isolation, enhancing performance capacity beyond OM4 cables
- QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Zipcord design, color-coded connectors for polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 6cm and 3cm when unloaded
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 2.4dB/km meets or exceeds industry standards
- WIDE COMPATIBILITY: OM5 multimode cable supports 10/40/100G networks; Backward compatible with OM4/OM3; High micro-bending resistance facilitates tight bends in intricate installations, ideal for fiber switches/servers, SANs, and SFP+/QSFP+/QSFP28 modules
- SPECS: 7m (22.9ft); OM5; LC/LC (UPC); 50/125µm; 850-953nm VCSEL/1300nm LED; Modal Bandwidth: 4700MHz.km (850nm), 2470MHz.km (953nm); Insertion Loss: ≤0.3dB; Return Loss: ≥30dB; Cable OD: 2.9mm; Bend Radius: 6cm/2.4in (loaded), 3cm/1.2in (unloaded)
See product description
Similar Products
-
10FT C2G RJ-45 Male to RJ-45 Male Cat6a Unshielded Snagless Unshielded Network Patch Ethernet Cable - Green
IN STOCK
£ 11.73 (incl. VAT) -
6FT C2G RJ-45 Male To RJ-45 Male Cat5e Snagless Unshielded Ethernet Patch Cable - Gray
IN STOCK
£ 3.41 (incl. VAT) -
C2G Shielded Snagless Cat6 Ethernet Network Cable - Orange - 4ft
IN STOCK
£ 10.34 (incl. VAT) -
C2G Unshielded Non-Booted Cat6 Ethernet Network Patch Cable - Orange - 50ft
IN STOCK
£ 21.29 (incl. VAT) -
13FT Tripp Lite LC Multimode To LC Multimode Duplex Fiber Patch Cable - Aqua
IN STOCK
£ 20.15 (incl. VAT) -
2Ft Tripp Lite Cat5e RJ45 Male To Male Molded Ethernet Cable - Black
IN STOCK
£ 1.70 (incl. VAT) -
Lindy U/UTP Cat6 RJ45 Patch Cable 3m – Blue
IN STOCK
£ 4.48 (incl. VAT) -
C2G Cat6 3ft Snagless Unshielded Network Patch Ethernet Cable - Blue
IN STOCK
£ 2.94 (incl. VAT) -
C2G Unshielded Snagless Cat5e Ethernet Network Cable - Blue - 6ft
IN STOCK
£ 3.41 (incl. VAT) -
7FT C2G RJ-45 Male To RJ-45 Male Cat5e Snagless Unshielded Network Patch Cable - Green
IN STOCK
£ 7.51 (incl. VAT) -
C2G Cat5E 350MHz Snagless Patch Cable 2.1 Meter (7 FT) Networking Cable Grey
IN STOCK
£ 3.65 (incl. VAT) -
Tripp Lite 20FT RJ45 Male to RJ45 Male Snagless Cat6 UTP Patch Cable - Blue
IN STOCK
£ 15.22 (incl. VAT) -
Tripp Lite 20FT RJ45 Male Cat6 Gigabit Snagless Molded Patch Cable - Blue
IN STOCK
£ 8.14 (incl. VAT) -
Tripp Lite 82FT LC to LC Duplex Multimode 62.5/125 Fiber Patch Cable - Orange
IN STOCK
£ 35.50 (incl. VAT) -
Tripp Lite 3FT RJ45 Male Cat6 Gigabit Snagless Molded UTP Patch Cable - Blue - 50 Pack
IN STOCK
£ 147.76 (incl. VAT)
Details
Enhance the performance capabilities of SWDM applications over an OM5 fiber network
OM5 LC to LC Multimode Duplex Fiber Optic Patch cable facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is ideal for 850-953 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM4 and OM3 10G networks, ensuring a reliable connection in legacy fiber environments.
LSZH Cable Jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OM5 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OM5 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
OM5 LC to LC Multimode Duplex Fiber Optic Patch cable facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is ideal for 850-953 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM4 and OM3 10G networks, ensuring a reliable connection in legacy fiber environments.
LSZH Cable Jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OM5 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OM5 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
Specifications
| LENGTH | 7 m |
| LEFT CONNECTOR | LC |
| RIGHT CONNECTOR | LC |
| MATERIAL | Low smoke zero halogen (LSZH) |
