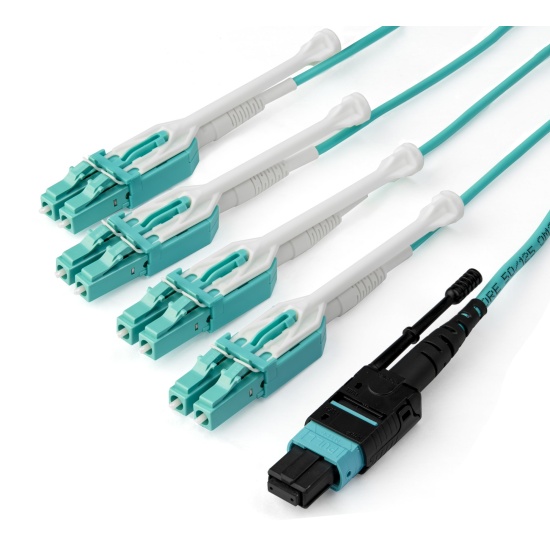

StarTech.com 1m (3ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord by StarTech
- Be the first to review
- Item Number: FD1539484
- Part Number: MPO8LCPL1M
| OUT OF STOCK |
£61.22 Incl. all UK VAT and taxes
Key Features
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
- SPECS: 1m (3.3ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ≤0.5dB (MTP), ≤0.2dB (LC)
See product description
Similar Products
-
Tripp Lite 7FT RJ45 Male Cat5e 350MHz Snagless Molded Patch Cable - Green
IN STOCK
£ 2.66 (incl. VAT) -
C2G Cat6 RJ-45 S/FTP (S-STP) 7.62 Meter (25 FT) Snagless Blue Network Cable
IN STOCK
£ 16.89 (incl. VAT) -
3FT C2G Cat6 RJ-45 Male To RJ-45 Male Non-Booted Unshielded Ethernet Patch Cable - White - CAT 6 - white
IN STOCK
£ 3.61 (incl. VAT) -
C2G Unshielded Snagless Slim Cat6 Ethernet Network Patch Cable - Gray - 3ft
IN STOCK
£ 5.07 (incl. VAT) -
Belkin Cat6 3ft Unshielded Networking Cable - Green
IN STOCK
£ 3.02 (incl. VAT) -
Tripp Lite 5FT RJ45 Male Cat5e 350MHz Snagless Molded UTP Patch Cable - Blue
IN STOCK
£ 2.29 (incl. VAT) -
Tripp Lite 7FT RJ45 Male Cat6 Gigabit Snagless Molded Patch Cable - White
IN STOCK
£ 4.37 (incl. VAT) -
6IN C2G Cat6 RJ-45 Male To RJ-45 Male Non Booted Unshielded Ethernet Network Patch Cable - Green
IN STOCK
£ 7.72 (incl. VAT) -
StarTech.com 10 Gigabit Shielded (SFTP) Cat6a RJ45 Patch Cable 0.5m – Black
IN STOCK
£ 8.13 (incl. VAT) -
Tripp Lite 3FT RJ45 Male to RJ45 Male Cat6 UTP Patch Cable - Blue
IN STOCK
£ 5.23 (incl. VAT) -
C2G Shielded Snagless Cat6 Ethernet Network Patch Cable - Red - 5ft
IN STOCK
£ 6.07 (incl. VAT) -
75FT C2G Cat6a RJ-45 Male To RJ-45 Male Snagless Unshielded UTP Network Patch Ethernet Cable - Gray
IN STOCK
£ 51.86 (incl. VAT) -
3FT C2G Cat6a RJ-45 Male To RJ-45 Male Snagless Unshielded Network Patch Ethernet Cable - Green
IN STOCK
£ 17.91 (incl. VAT) -
Tripp Lite 25FT RJ45 Male Cat6 Gigabit Snagless Molded Patch Cable - Purple
IN STOCK
£ 18.23 (incl. VAT) -
25FT C2G Cat6 RJ-45 Male To RJ-45 Male Snagless Unshielded Ethernet Network Patch Cable - Pink
IN STOCK
£ 8.99 (incl. VAT)
Details
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL1M from StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL1M from StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage
Specifications
| LENGTH | 1 m |
| LEFT CONNECTOR | MPO/MTP |
| RIGHT CONNECTOR | 8x LC |
