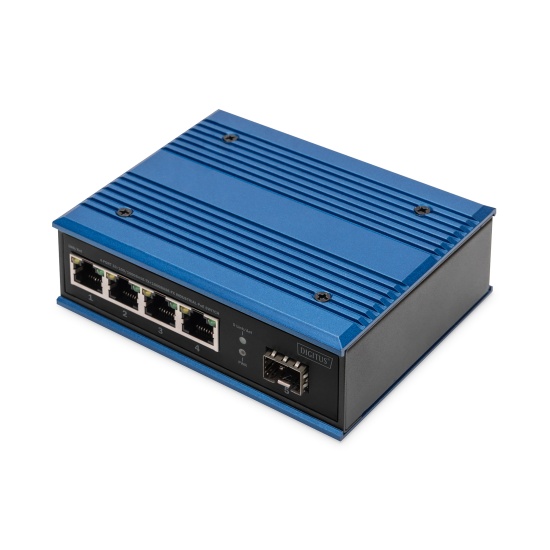

Digitus 4 Port Gigabit Ethernet Network PoE Switch, Industrial, Unmanaged, 1 SFP Uplink by Digitus

Key Features

• 4-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE
• 1-port 1000Base-Fx interface SFP
• -40℃ to 80℃ operating temperature
• Enclosure: IP40 aluminum housing
• Supports 6KV DC Ethernet ESD protection
• DIN-rail Installation
• Performance Specification: Bandwidth: 14Gbps, Packet Buffer Memory:1.2Mbit, Packet Forwarding Rate: 10.5Mpps, MAC Address Table: 2K
• Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
• LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow
• Power Input: 48 to 57V DC redundant power
• Power Consumption: < 3 watts
• Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
• Network cables: 10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100meter)
• Industry Standard: FCC CFR47 Part 15,EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV, IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV, IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz), IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
• Dimensions (W x D x H): 118 x 92.4 x 40 mm
• Weight: Product Weight: 0.55KG
• Working Environment: working temperature: -40～80℃ ;Storage temperature: -40～80℃
• Relative Humidity: 5%~95 % ( no condensation)
• Product weight: 0.45 kg
• Working environment: Operating temperature: -40 to max. 80℃; storage temperature: -40 to max. 80℃
• Relative humidity: 5% to max. 95% (non-condensing)
• Total PoE Power budget (W): 120 W
