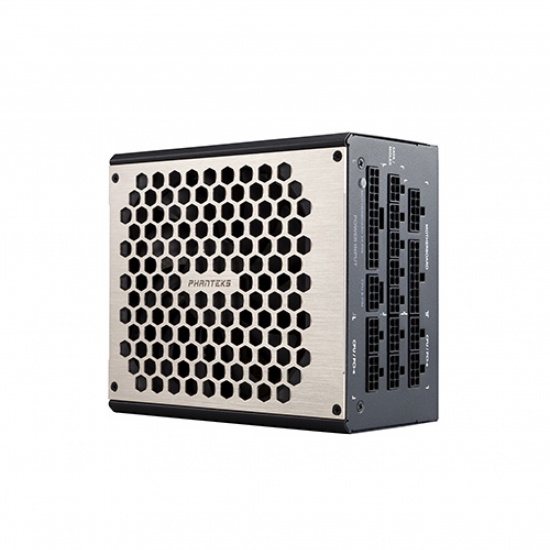

PHANTEKS Revolt Pro 850W ATX Fully Modular Power Supply by Phanteks
- Be the first to review
- Item Number: 391-0044
- Part Number: PH-P850GC_EU
No longer available. See alternative options
Key Features
- 850W of power
- 80 Plus Gold certification
- 92% efficiency at 50% system load
- Capable of powering overclocked systems with multi-CPU, multi-GPU or even dual-system PCs.
- 12 Years Warranty
See product description
Similar Products
-
Be Quiet! SFX-L Power 80 Plus Gold 600W Power Supply
IN STOCK
£ 111.80 (incl. VAT) -
MSI MAG A550BN 550W ATX Non Modular Power Supply - Black
IN STOCK
£ 52.96 (incl. VAT) -
ASUS LOKI SFX-L 850W Fully Modular RGB PSU Power Supply - Platinum
IN STOCK
£ 230.06 (incl. VAT) -
MSI MAG 750W Fully Wired 90 Plus Bronze ATX Power Supply - Black
IN STOCK
£ 83.64 (incl. VAT) -
ASUS ROG LOKI SFX-L PSU RGB 120mm Power Supply - Platinum - White
IN STOCK
£ 237.44 (incl. VAT) -
Thermaltake Toughpower GF1 ARGB 650W ATX Fully Modular Power Supply
IN STOCK
£ 112.02 (incl. VAT) -
MSI MAG A650BN 650W ATX Non Modular Power Supply - Black
IN STOCK
£ 64.22 (incl. VAT) -
Thermaltake Toughpower GF1 ARGB 850W ATX Fully Modular Power Supply
IN STOCK
£ 137.39 (incl. VAT) -
ASUS LOKI ROG SFX-L 750W Platinum PSU Power Supply
IN STOCK
£ 197.44 (incl. VAT) -
ASUS Loki ROG SFX-L 1000W Platinum PSU Power Supply
IN STOCK
£ 253.90 (incl. VAT)
Details
Phanteks brings patented technology of the Power Combo to the Revolt PRO power supply. In collaboration with Seasonic, the Revolt Pro is 80 PLUS Gold certified, fully modular, and the very first expandable power supply. The Revolt Pro allows you to connect a secondary power supply to provide increased power output or redundancy to protect your data from power failure. The Revolt PRO makes advanced server features accessible and cost-efficient for everyone in a true plug-and-play manner.
Specifications
| POWER PROVIDED | 850 W |
| FORM FACTOR | ATX |
| INPUT VOLTAGE | AC input voltage: 100 - 240 V |
| INPUT FREQUENCY | AC input frequency: 50/60 Hz |
| OUTPUT CONNECTORS | 1 x 24-pin Connector 2 x CPU Connector 4x(8 connectors) PCIe 4x(14 connectors) SATA 1x (3 connectors) Molex |
| MOTHERBOARD CONNECTOR | 24-pin ATX |
| CPU POWER CONNECTOR | (4-pin): 5 |
| SATA POWER CONNECTOR | 14 |
| PERIPHERAL (MOLEX) POWER CONNECTOR | (4-pin): 3 |
| FANS | 1 x 135mm |
| FAN DIAMETER | 13.5 cm |
| POWER PROTECTION FEATURES | Over-current, Overpower, Overcharge, Overheating, Short circuit |
| DIMENSIONS | Width: 170 mm Depth: 150 mm Height: 86 mm |
| MODULAR | Modular |
| COLOR | Black |
| COOLING TYPE | Active |
| ENERGY EFFCIENCY | 80 PLUS Gold |
| MTBF | 100000 h |
| WARRANTY | 12 Year Warranty |
